I recently built an arduino-based home automation controller for my garden lighting and sprinkler system.  Really it’s just a fancy-pants replacement for the 4 glorified timers that were controlling the front and back yard sprinklers and lights.  Yes, there are products that do what my thing does.  Yes it would have been cheaper to buy vs. build, but I’m a nerd, man.

Here’s the high-level stuff it does:

  • Every morning at 5 AM it gets the 5 day weather forecast via the Weather Underground API
  • Every morning at 5 AM it gets the astronomy forecast via the Weather Underground API
  • Based on the Astronomy feed, it makes the lights come on 15 minutes after sunset for 2 hours
  • Based on the Weather feed, it determines how long each sprinkler should run for that day, starting at 6AM.

The sprinkler logic is kinda fun:

  • If there has been no precipitation in the last 5 days it will run on schedule
  • If the POP (Percentage of Precipitation) is below 50% it will run on schedule
  • If the projected high temperature is between 81-90 degrees F it runs for 10 minutes
  • If the projected high temperature is between 91-100 degrees F it runs for 15 minutes
  • If the projected high temperature is between 101+ degrees F it runs for 20 minutes

That’s really it for the software logic.

Now for the hardware.

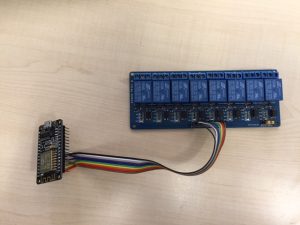

There are 2 “nodes” that are powered by an ESP8266, connected to an 8 channel relay board. One in the front yard and one in the back.

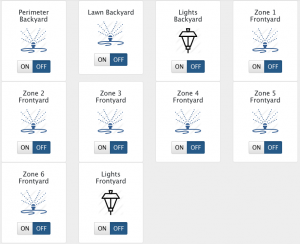

Each node runs a web server that can only communicate with another web server that does all the grabbing of forecasts, etc.  The central server just sends GET commands to the nodes, such as: http://node1/Sprinkler1On and http://node2/Sprinkler1Off

Really, all we’re doing in the central server is running some logic on a timer and telling the remote nodes when to turn on and off (Yes, I realize that’s exactly what the old sprinkler controllers were doing).  However, having that weather and astronomy feed will hopefully reduce the amount of water I’m dumping on my lawn and plants.  I do believe we’re out of our California drought, but nobody likes a waster.

Now if I could just build something like this for my PG&E consumption….Hmmmmmm
